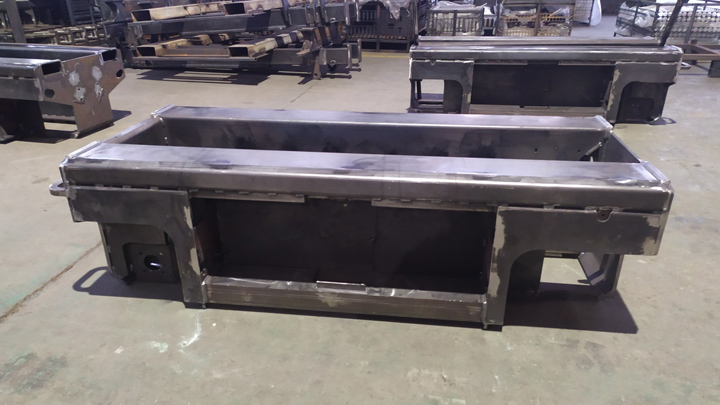

Welded structural parts of lifting machine chassis Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

7.5 ton I-BEAM Material:42CrMo
Tonnage:7.5T
Distance between kingpins:1767
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:3°
Drop:89

2.2 ton I-BEAM Material:45#
Tonnage:2.2T
Distance between kingpins:1359
Distance between leaf springs:750
Kingpin diameter:φ30
Kingpin Inclination:7.5°
Drop:64+5

4 ton I-Beam front axle Material:45#
Tonnage:4T
Distance between kingpins:1627
Distance between leaf springs:860
Kingpin diameter:φ42
Kingpin Inclination:6°
Drop:100

1.5 ton I-BEAM Material:45#
Rated load:1.5T
Distance between kingpins:1354
Distance between leaf springs:710
Kingpin diameter:φ25
Kingpin Inclination:7.5°
Drop:64+8

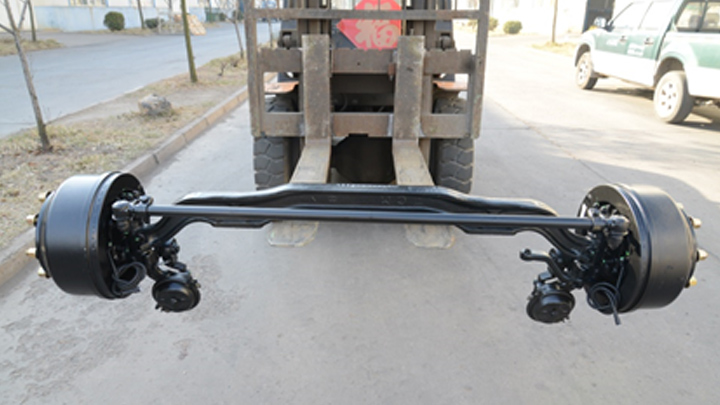

4.3 ton truck steering axle Material:45
Tonnage:4.3T
Distance between kingpins:1727
Distance between leaf springs:851~900
Kingpin diameter:φ38
Kingpin Inclination:7°
Drop:74
Brake specification:Φ400
Rim mounting face distance:2204~2268

Other welded structural parts of lifting machine Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

3.5 tonI-Beam front axle Material:40Cr
Tonnage:3.5T
Distance between kingpins:1646
Distance between leaf springs:860
Kingpin diameter:φ40
Kingpin Inclination:8°
Drop:85+35

1 ton truck steering axle Material:45
Tonnage:1T
Distance between kingpins:1165~1360
Distance between leaf springs:650~780
Kingpin diameter:φ25
Kingpin Inclination:7.5°
Drop:23~60
Brake specification:Φ280~320
Rim mounting face distance:1215~1600

Welded structural parts of lifting machine scissors Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

5.5 ton I-BEAM Material:42CrMo
Tonnage:5.5T
Distance between kingpins:1853.3
Distance between leaf springs:850
Kingpin diameter:φ47
Kingpin Inclination:7°
Drop:φ16
