2.2 ton I-BEAM Material:45#
Tonnage:2.2T
Distance between kingpins:1359
Distance between leaf springs:750
Kingpin diameter:φ30
Kingpin Inclination:7.5°
Drop:64+5

4 ton I-Beam front axle Material:45#
Tonnage:4T
Distance between kingpins:1627
Distance between leaf springs:860
Kingpin diameter:φ42
Kingpin Inclination:6°
Drop:100

5 ton truck steering axle Material:42CrMo
Tonnage:4.5~6.1T
Distance between kingpins:1820
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:6.5°
Drop:100
Brake specification:Φ400
Rim mounting face distance:2219~2368

1.5 ton I-BEAM Material:45#
Rated load:1.5T
Distance between kingpins:1354
Distance between leaf springs:710
Kingpin diameter:φ25
Kingpin Inclination:7.5°
Drop:64+8

3.5 tonI-Beam front axle Material:40Cr
Tonnage:3.5T
Distance between kingpins:1646
Distance between leaf springs:860
Kingpin diameter:φ40
Kingpin Inclination:8°
Drop:85+35

Welded structural parts of corn harvester chassis The upper frame and the front axle have two structures.（Welding in one piece or assembling separately）

4.3 ton truck steering axle Material:45
Tonnage:4.3T
Distance between kingpins:1727
Distance between leaf springs:851~900
Kingpin diameter:φ38
Kingpin Inclination:7°
Drop:74
Brake specification:Φ400
Rim mounting face distance:2204~2268

6.5ton truck axle Material : 42CrMo
Rated load : 6.5T
Distance between kingpins:1800.8
Distance between leaf springs:850
Kingpin diameter:φ52
Kingpin Inclination:7°
Drop:89
Brake specification:Φ430*45
Rim mounting face distance:2410.7

1 ton truck steering axle Material:45
Tonnage:1T
Distance between kingpins:1165~1360
Distance between leaf springs:650~780
Kingpin diameter:φ25
Kingpin Inclination:7.5°
Drop:23~60
Brake specification:Φ280~320
Rim mounting face distance:1215~1600

3 ton I-Beam front axle Material:40Cr
Tonnage:3T
Distance between kingpins:1490
Distance between leaf springs:860
Kingpin diameter:φ40
Kingpin Inclination:7.5°
Drop:85+35

Welded structural parts of lifting machine chassis Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

4.2 ton I-BEAM Material:45
Tonnage:4.2T
Distance between kingpins:1727
Distance between leaf springs:851
Kingpin diameter:φ38
Kingpin Inclination:7°
Drop:φ14

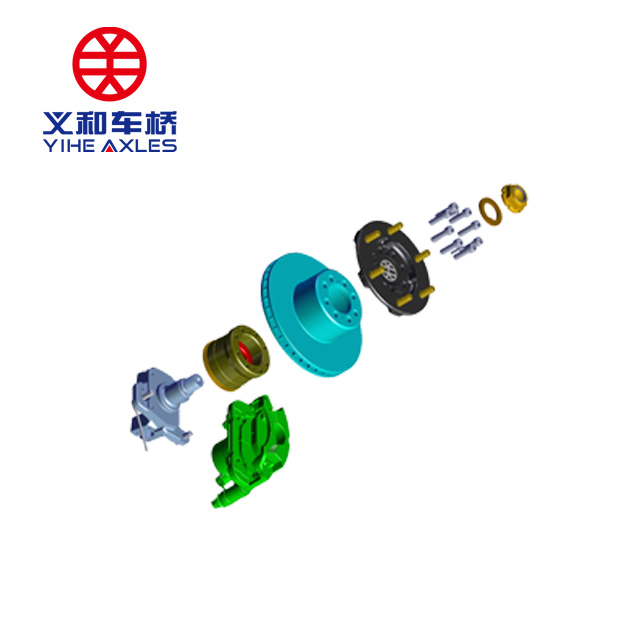

What's the use of the front axle of a truck？ It is the soul bridge of the vehicle, carrying all the force t...

The black technology behind this axle factory is so shocking! Zhucheng Yihe Axle Co., Ltd. has a market share of 85% in the ...

Geely New Energy Automobile Group Co., Ltd. reached a strategic cooperation with Yihe Axle Co., LTD In a collaborative alliance, the strategic signing ceremony be...

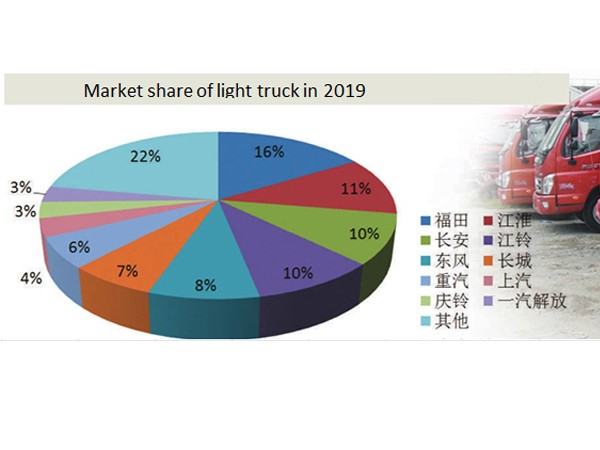

How to Improve the Management of Yi He Axle Manufacturers in Data Age In the era of digitalization, Yi He Axle must rely on data to ...
