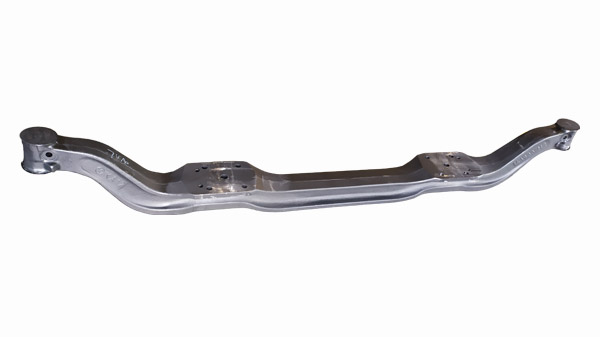

3.5 tonI-Beam front axle Material:40Cr
Tonnage:3.5T
Distance between kingpins:1646
Distance between leaf springs:860
Kingpin diameter:φ40
Kingpin Inclination:8°
Drop:85+35

5 ton truck steering axle Material:42CrMo
Tonnage:4.5~6.1T
Distance between kingpins:1820
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:6.5°
Drop:100
Brake specification:Φ400
Rim mounting face distance:2219~2368

7.5 ton I-BEAM Material:42CrMo
Tonnage:7.5T
Distance between kingpins:1767
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:3°
Drop:89

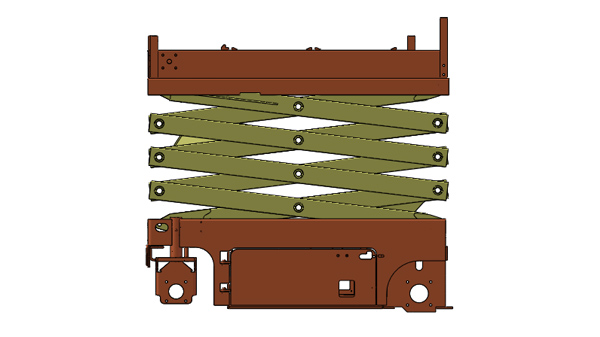

Welded structural parts of lifting machine chassis Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

1 ton truck steering axle Material:45
Tonnage:1T
Distance between kingpins:1165~1360
Distance between leaf springs:650~780
Kingpin diameter:φ25
Kingpin Inclination:7.5°
Drop:23~60
Brake specification:Φ280~320
Rim mounting face distance:1215~1600

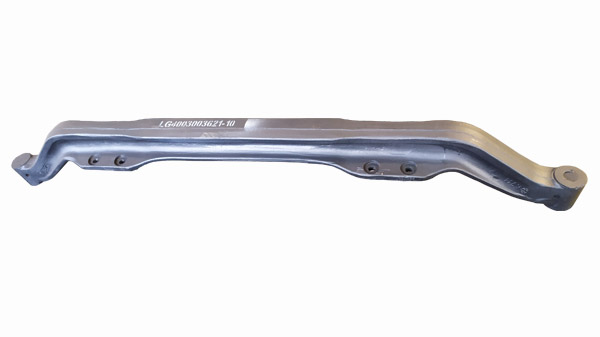

9 ton I-Beam front axle Material:42CrMo
Rated load :9T
Distance between kingpins:1770
Distance between leaf springs:850
Kingpin diameter:φ52
Kingpin Inclination:6°
Drop:89

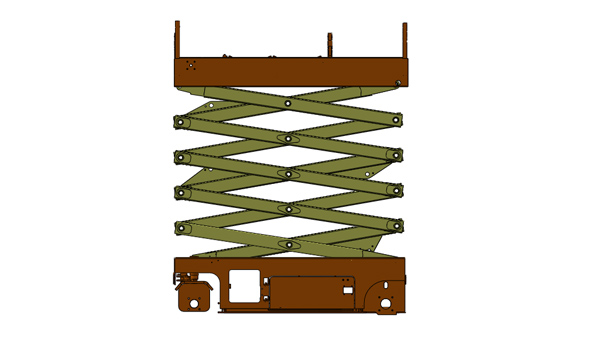

Welded structural parts of lifting machine platform Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

Truck Seat-copilot

Truck Seat-Driver

6.5ton truck axle Material : 42CrMo
Rated load : 6.5T
Distance between kingpins:1800.8
Distance between leaf springs:850
Kingpin diameter:φ52
Kingpin Inclination:7°
Drop:89
Brake specification:Φ430*45
Rim mounting face distance:2410.7

3 ton truck steering axle Material:40Cr
Tonnage:3T
Distance between kingpins:1530
Distance between leaf springs:800
Kingpin diameter:φ32
Kingpin Inclination:8°
Drop:95
Brake specification:Φ320~360
Rim mounting face distance:1893~2224

2 ton I-BEAM Material:45
Tonnage:2T
Distance between kingpins:1359
Distance between leaf springs:760
Kingpin diameter:φ30
Kingpin Inclination:7.5°
Drop:φ10.8
