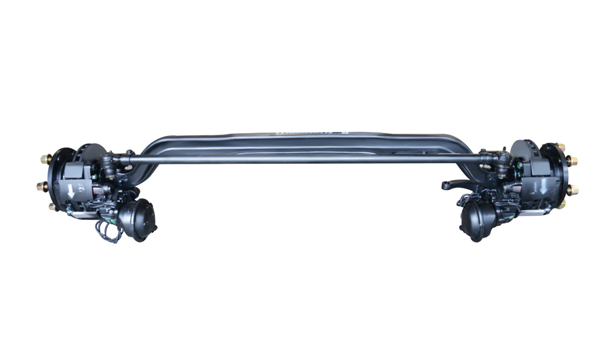

2.2 ton truck axle Material : 42CrMo
Rated load : 2.2T
Distance between kingpins:1490
Distance between leaf springs:850
Kingpin diameter:φ35
Kingpin Inclination:7°
Drop:89
Brake specification:Φ250*45
Rim mounting face distance:1980

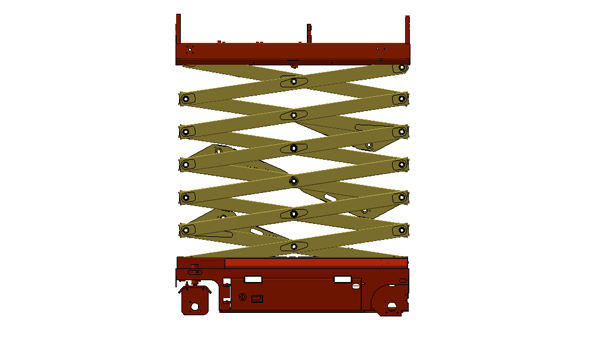

Welded structural parts of lifting machine scissors Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

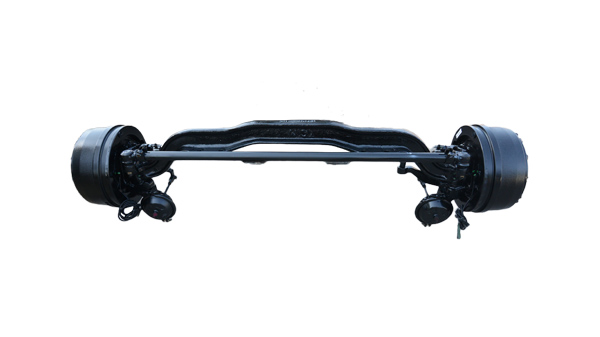

3.5 ton truck steering axle Material:40Cr
Tonnage:3.5 T
Distance between kingpins:1630
Distance between leaf springs:800
Kingpin diameter:φ32
Kingpin Inclination:8°
Drop:95
Brake specification:Φ320~360
Rim mounting face distance:1900~2224

Welded structural parts of lifting machine chassis Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

6.5ton truck axle Material : 42CrMo
Rated load : 6.5T
Distance between kingpins:1800.8
Distance between leaf springs:850
Kingpin diameter:φ52
Kingpin Inclination:7°
Drop:89
Brake specification:Φ430*45
Rim mounting face distance:2410.7

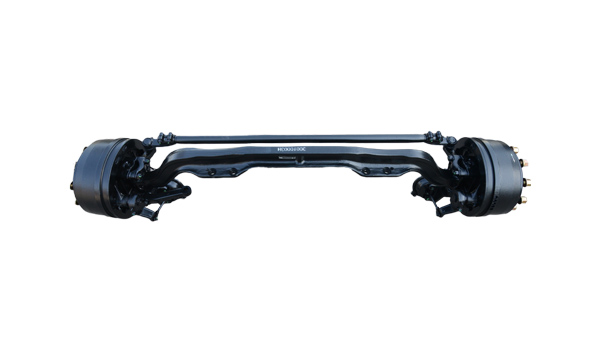

4.3 ton truck steering axle Material:45
Tonnage:4.3T
Distance between kingpins:1727
Distance between leaf springs:851~900
Kingpin diameter:φ38
Kingpin Inclination:7°
Drop:74
Brake specification:Φ400
Rim mounting face distance:2204~2268

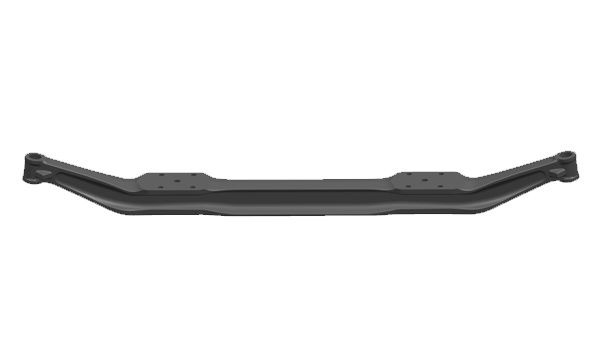

5 ton I-Beam Material:42CrMo
Tonnage:4.5~6.1T
Distance between kingpins:1820
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:6.5°
Drop:φ14

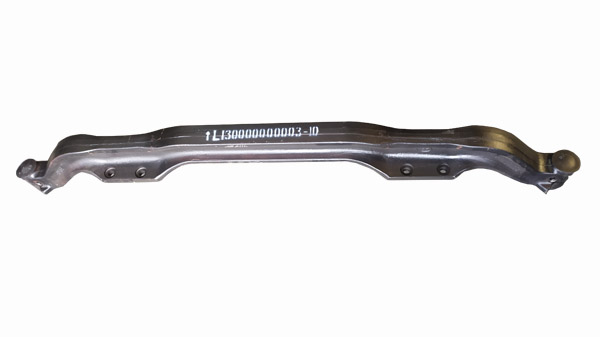

6.5 ton I-Beam front axle Material:HRC23-30
Tonnage:6.5T
Distance between kingpins:1773.3
Distance between leaf springs:830
Kingpin diameter:φ52
Kingpin Inclination:7°
Drop:92.3

Welded structural parts of cotton picker chassis The front axle closed side by structure ; The rear axle fixed seat with casting structure.

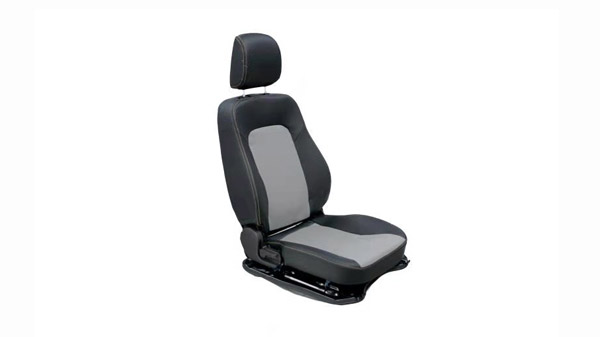

Truck Seat-Driver

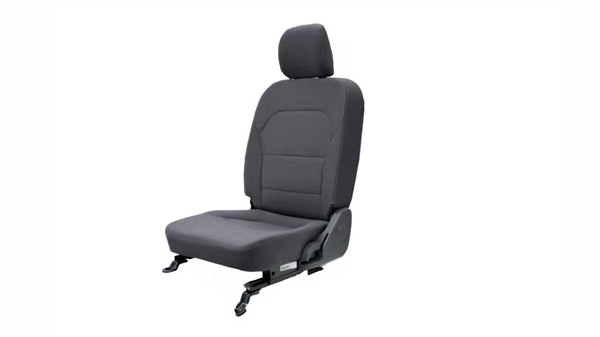

Truck Seat-copilot

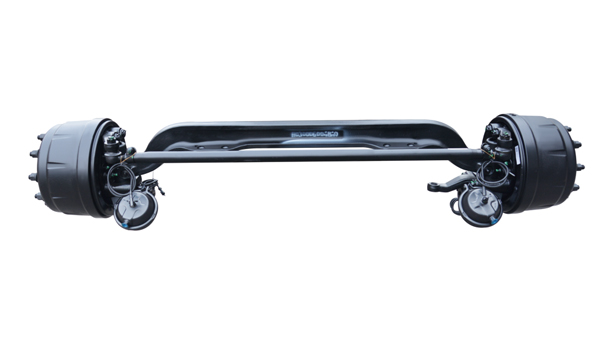

9ton truck axle Material:42CrMo
Rated load:9T
Distance between kingpins:1770
Distance between leaf springs:850
Kingpin diameter:φ52
Kingpin Inclination:6°
Drop:89
Brake specification:Φ420*180
Rim mounting face distance:2372
